Dash 6 Fuel Rail Extrusion
Dash 6 Fuel Rail Extrusion is extruded from 6063 aircraft quality aluminum. The Dash 6 Extrusion shown above has an internal bore diameter
of .500" with an overall external size of .875" wide x 1.250" tall. The extrusion is perfect for either mass
production or the Do-it-yourself-er looking to improve not only the performance of their fuel system but the look of the engine
bay. The rail stock is sold per foot, with minimum orders of 2 feet required. Please set your quantity to the amount of feet
you would like to purchase. We do offer price breaks on larger quantities, please inquire if interested. $17.00 per ft
2ft. minimum
purchase Dash 6 Fuel
Rail Extrusion FI-019 $17.00
PN-FI-019 Dash-6 Extrusion: : Universal Quantity: 1-foot
Dash 8 Fuel Rail Extrusion
Dash 6 Fuel Rail Extrusion is extruded from 6063 aircraft quality aluminum. The Dash 8 Extrusion shown above has an internal bore diameter
of .690" with an overall external size of .875" wide x 1.40" tall. The extrusion is perfect for either mass production or
the Do-it-yourselfer looking to improve not only the performance of their fuel system but the look of the engine bay. The
rail stock is sold per foot, with minimum orders of 2 feet required. Please set your quantity to the amount of feet you would
like to purchase. We do offer price breaks on larger quantities, please inquire if interested.
$18.00 per ft
2ft. minimum purchase
Dash 8 Fuel Rail Extrusion
FI-069
$18.00
PN-FI-069 Dash-8 Extrusion: : Universal
Quantity: 1-foot
Dash 10 Fuel Rail Extrusion
Dash 10 Fuel Rail Extrusion is extruded from 6063 aircraft quality aluminum. The Dash 10 Extrusion shown above has an internal bore diameter
of .800" with an overall external size of 1.125" wide x 1.500" tall. The extrusion is perfect for either mass production or
the Do-it-yourselfer looking to improve not only the performance of their fuel system but the look of the engine bay. The
rail stock is sold per foot, with minimum orders of 2 feet required. Please set your quantity to the amount of feet you would
like to purchase. We do offer price breaks on larger quantities, please inquire if interested.
$19.00 per ft
2ft. minimum purchase
Dash 10 Fuel Rail Extrusion
FI-020
$19.00
PN-FI-020 Dash-10 Extrusion: :
Universal Quantity: 1-foot

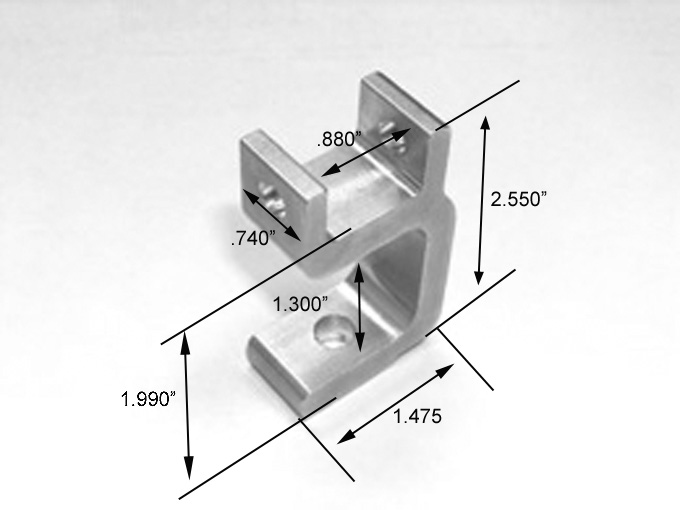

Our Fuel Rail Clamps are machined from 6061-T6 aircraft quality aluminum.
These are perfect for those looking into custom clamps for aftermarket intake builds. These are setup for the long 60.3mm Bosch type injectors. Why make a flimsy sheet metal clamp for your fuel rail when you can accent your build with these sturdy billet
clamps.
$18.50 pc
Universal Fuel Rail Clamps
FI-050
$18.50
PN-FI-050 Universal Fuel Rail Clamps:
: Universal Quantity: 1
Additional Dual Injector Assembly
With this additional injector assembly you can simply weld on the lower portion
to a 3" aluminum tube which can give a substantial increase in fuel by utilizing 2 injectors instead of one. The injector
assembly comes with Black hard anodized rail for use with methanol and other exotic fuels with no problems. Included are,
all stainless hardware, aluminum clamps and lower section, and -10 fittings. Use the Bosch style long 60.3mm injectors with 14mm o-rings
$119.00 per assembly
Limited Quantities Avail.
Injectors Not Included
Additional Fuel Injector Assembly
FI-080
$119.00
PN-FI-080 Fuel Injector Assembly:
: Universal Quantity: 1
Our Fuel Injector bungs are machined from 6061-T6 aircraft quality aluminum.
These are perfect for those looking into doing a EFI conversion on a carbureted motor. Setup for 14mm Oring or Bosch style
injectors these are a must have for anyone looking for a simple easy way of fabricating a way to hold the manifold side of
the injector. At 2" in length, these are perfect for cutting down to size for differing applications. Bungs can be welded
or epoxied to manifold. Sold in sets of (4). Please set your quantity to how many sets of (4) you would like to purchase.
$32.00 per set of 4
Fuel Injection Bungs
FI-027
$32.00
PN-FI-027 Fuel Injector Bungs:
: Universal Quantity: 4
Custom Aluminum Plenum Matterials
Half Round Plenum Extrusion
The Half Round Plenum Extrusion is extruded from 6063 aluminum. The Extrusion
shown above has an internal diameter of 3.5" with an overall external size of 4.00" wide x 4.00" tall. The extrusion is perfect
for either one off manifold buildups or for someone looking to produce and market their own Intake Manifold design.The Half
round design is ideal for tight engine bays where clearance with the hood or firewall is an issue. Please set your quantity
to the amount of feet you would like to purchase. We do offer price breaks on large quantities, please inquire if interested.
$49.95 Per Foot
Half Round Plentum
FI-043
$49.95
PN-FI-043 Half Round Plentum: :
Universal Quantity: 1-foot
Universal Half Round Vacuum End Cap
The Universal Half round vacuum end cap is machined from 6061
aircraft quality aluminum. The end cap is designed to key into the profile of our half round plenum extrusion for easy mock
up and welding. It comes pre machined with three 1/2" NPT holes for easy installation of hose barbs for all of your vacuum
lines. This in conjunction with our other manifold parts make for an easy, clean, and different looking manifold that you
can build yourself
$39.99 each
Half Round Vacuum End Cap
FI-048
$39.95
PN-FI-048 Half Round Vacuum End
Cap: : Universal Quantity: 1

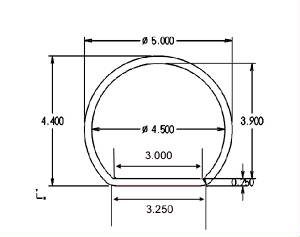

The D shape plenum material is extruded from 6063 aluminum.
This plenum material is designed with the forced induction racer in mind. Large 5" ID offers maximum plenum volume for turbo
or supercharged applications. The unique D shape makes it easy for one off fabrication of a manifold while still keeping the
performance to a maximum. Quarter inch wall thickness insures strength compared to hand building a sheet metal intake. When
ordering set the quantity field to the amount of feet you would like to purchase.
$59.95 Per Foot
D-Shaped Plentum Matterial
FI-072
$59.95
PN-FI-072 D-Shaped Plentum Matterial:
: Universal Quantity: 1-foot
The D shape end cap is machined from 6061 aircraft
quality aluminum. The end cap is designed to match the profile of our D plenum extrusion for easy mock up and welding. This
in conjunction with our other manifold parts make for an easy, clean, and different looking manifold that you can build yourself.
$39.95 each
D Plentum End Cap
FI-077
$39.95
PN-FI-077 D Plentum End Cap: :
Universal Quantity: 1
Throttle Body Adapter Plates
75mm Mustang TB Adapter
Machined from 6061 aircraft quality aluminum.
Fits our Half Round and D Plenum material.
$59.95 each
75mm Mustang Adapter Plate
FI-047-075
$59.95
PN-FI-047-075 75mm Mustang Adapter
Plate: : Universal Quantity: 1
90mm Mustang TB Adapter
Machined from 6061 aircraft quality aluminum.
Fits
our D Plenum material only.
$59.95 each
90mm Mustang Adapter Plate
FI-047-090
$59.95
PN-FI-047-090 90mm Mustang Adapter
Plate: : Universal Quantity: 1
90mm MustangTB Adapter For The D Shape Plenum
90mm Mustang TB Adapter
Machined from 6061 aircraft quality aluminum.
Specifically
designed to fit our D Plenum material only.
$59.95 each
90mm Mustang Adapter Plate
FI-086
$59.95
PN-FI-086 90mm Mustang Adapter
Plate: : Universal Quantity: 1
1/2" x 4" 6061 Aluminum Flange Plate Material
Flat Aluminum stock can be used as Plentum base or other simular use.
Base can be welded, epoxied or screwed to plentum.
$18.00 per foot
2 Foot Minimum
1/2 x 4" Aluminum Plate Matterial
FI-060
$18.00
PN-FI-060 1/2 x 4" Aluminum
Plate Matterial : : Universal Quantity: 1-foot
1/2" x 6.00" x 6.00" Throttle Body Adapter Plate Material
1/2" x 6.00" x 6.00" Universal Throttle Body Adapter Plate Material.
Can be used to close an end or make custom TB Plate on plemtum extrusion.
$19.00 each
1/2 x 6" x 6" Aluminum Throttle Body Matterial
FI-061
$19.00
PN-FI-061 1/2 x 6" x 6"
Aluminum Throttle Body Matterial : : Universal Quantity: 1

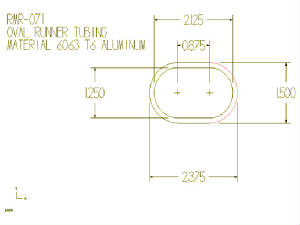

Exclusive to RMR, our new Oval Runner tubing is extruded from 6063 aircraft
quality aluminum. This material is perfect for custom intake builds with a oval port shape. This material works in conjunction
with our oval velocity stack for simple installation. Material is sold per foot with a minimum of 2ft required to complete
an order. When ordering set the quantity field to the amount of feet you would like to purchase.
$22.00 per ft
2ft.
minimum purchase
Oval Runner Tubing
FI-071
$22.00
PN-FI-071 Oval Runner Tubing :
: Universal Quantity: 1-foot
1.625" Runner Tube
1 5/8 OD x .125
Wall
Our 1 5/8 OD x .125 Wall tube is extruded from
6061 aircraft quality aluminum. This material is perfect for custom intake builds with a smaller port shape on the head. This
material works in conjunction with our 1.625 velocity stacks for simple installation. Material is sold per foot with a minimum
of 2ft required to complete an order.
$19.00 per ft
2ft. minimum purchase
1-5/8" Round Runner Tubing
FI-061-1.625
$19.00
PN-FI-061-1.625 1-5/8" Round
Runner Tubing : : Universal Quantity: 1-foot
1.75" Runner Tube
1 3/4 OD x .125 Wall
Our 1 3/4 OD x .125 Wall tube is extruded from 6061 aircraft quality aluminum. This
material is perfect for custom intake builds with a smaller port shape on the head. This material works in conjunction with
our 1.75 velocity stacks for simple installation. Material is sold per foot with a minimum of 2ft required to complete an
order.
$14.00 per ft
2ft. minimum purchase
1-3/4" Round Runner Tubing
FI-061-1.75
$14.00
PN-FI-061-1.75 1-3/4" Round
Runner Tubing : : Universal Quantity: 1-foot
2.00" Runner Tube
2
OD x .125 Wall
Our 2 OD x .125 Wall tube is extruded from 6061 aircraft quality aluminum.
This material is perfect for custom intake builds with a smaller port shape on the head. This material works in conjunction
with our 2.00 velocity stacks for simple installation. Material is sold per foot with a minimum of 2ft required to complete
an order.
$15.00 per ft
2ft. minimum purchase
2" Round Runner Tubing
FI-061-2.0
$15.00
PN-FI-061-2.0 2" Round Runner
Tubing : : Universal Quantity: 1-foot
2.25" Runner Tube
2 1/4 OD x .125
Wall
Our 2.25 OD x .125 Wall tube is extruded from 6061 aircraft quality aluminum.
This material is perfect for custom intake builds with a smaller port shape on the head. This material works in conjunction
with our 2.25 velocity stacks for simple installation. Material is sold per foot with a minimum of 2ft required to complete
an order.
$19.00 per ft
2ft. minimum purchase
2-1/4" Round Runner Tubing
FI-061-2.25
$19.00
PN-FI-061-2.25 2-1/4" Round
Runner Tubing : : Universal Quantity: 1-foot
90mm Mustang TB Adapter For The D Shape Plenum
90mm Mustang TB Adapter
Machined from 6061 aircraft quality aluminum.
Specifically designed to fit our D Plenum material only.
