Weather Pac Connectors

     Weather-Pac Connectors

Use weather packs for automotive, marine, agricultural and other harsh environmental applications.

The weather pack was designed for the engine compartment of a vehicle.

Positive snap-action locking. Secondary locking helps terminal retention and provides access to the terminals for service.

Stops in all cavities to insure proper insertion of terminals.

All connectors indexed to prevent mis-mating.

Rated -40 degree C to 125 degree C.

Add your content here	Number of Conductors	Style	Male Housing	Female Housing
Add your content here	One	Flat	75012 Weather-Pac Connectors 75012 1-Male $0.79	75010 Weather-Pac Connectors 75010 1-Female $0.86
Add your content here	Two	Flat	75016 Weather-Pac Connectors 75016 2-Male $0.87	75014 Weather-Pac Connectors 75014 2-Female $0.99
Add your content here	Three	Flat	75020 Weather-Pac Connectors 75020 3-Male $1.04	75018 Weather-Pac Connectors 75018 3-Female $1.15
Add your content here	Four	Double	75046 Weather-Pac Connectors 75046 4-Male $1.15	75044 Weather-Pac Connectors 75044 4-Female $1.35
Add your content here	Four	Flat	75024 Weather-Pac Connectors 75022 4-Female Flat $1.35	75022 Weather-Pac Connectors 75022 4-Female Flat $1.35
Add your content here	Six	Flat	75028 Weather-Pac Connectors 75028 6-Male Flat $1.32	75026 Weather-Pac Connectors 75026 6-Female Flat $1.45

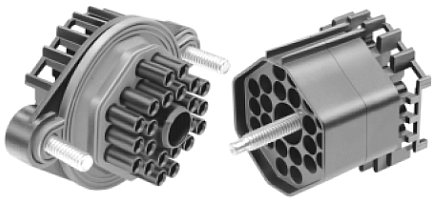

Add your content here	22 Terminal	Round	Add your content here	Complete Kit (male & female) Weather-Pac Terminals 75030-22 22-Pin Con Kit $69.95 Complete Kit

Cavity Plugs & Seal

Seals and plugs are made of self-lubricating silicone.

Multiple "ribs" seal against dust, moisture, engine compartment fluids and chemicals.

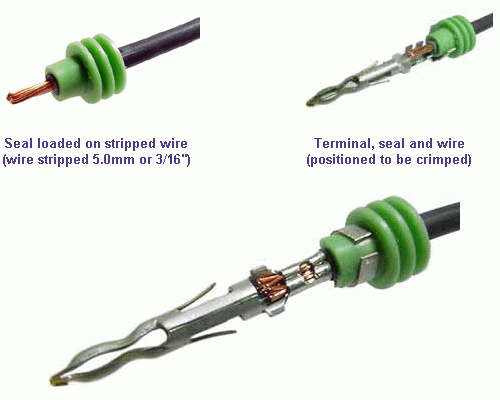

Cavity seals are crimped to the terminal to assure positive position of the seal in the housing cavity.

The cavity plug is designed to fill and seal unused cavities.

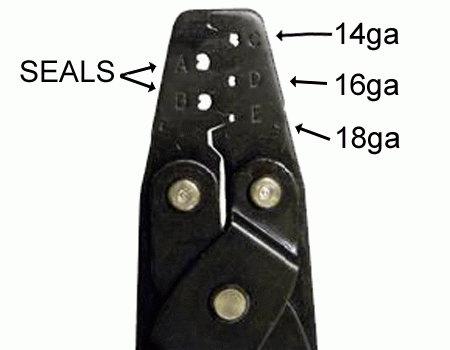

Weather Pack Crimping and Removal Tools

This crimper (# 906485) is designed for the positive crimping of weatherpack terminals: 14 - 20 gauge

For 12 gauge, choose crimper no. 906495

The ratchet assembly assumes a perfect crimp every time

Quality tools for long-lasting and dependable service

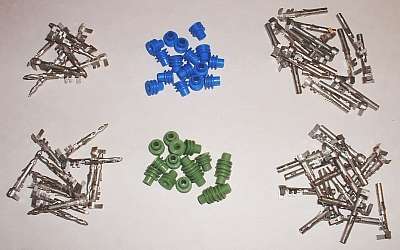

	Gauge	Catalog Num Male	Catalog Num Female	Catalog Number
	12 G Terminal	75038 Weather-Pac Terminals 75038 12Ga. Male $0.37	75040 Weather-Pac Terminals 75040 12Ga. Female $0.39
	14-16 G Terminals	75034 Weather-Pac Terminals 75034 14-16Ga. Male $0.35	75036 Weather-Pac Terminals 75036 14-16Ga. Female $0.37
	18-20 G Terminals	75030 Weather-Pac Terminals 75030 18-20 Ga. Male $0.33	75032 Weather-Pac Terminals 75032 18-20 Ga. Female $0.35
	Seal Blue 12 Gauge			75006 $.14  Blue Seal 75006 $.14 PN-CWH-055 Weather-Pac Blue Seal 10-12 Gauge: Seal Weather-Pac Terminal: Universal Quantity: 1
	Seal Grey 14-16 Gauge			75004 $.14  Grey Seal 75004 $.14 PN-CWH-056 Weather-Pac Grey Seal 14-16 Gauge: Seal Weather-Pac Terminal: Universal Quantity: 1
	Seal Orange 18-20 Gauge			75008 $.14  Orange Seal 75008 $.14 PN-CWH-057 Weather-Pac Orange Seal 18-20 Gauge: Seal Weather-Pac Terminal: Universal Quantity: 1
	Seal Green 20-18			75002 $.14  Green Seal 75002 $.14 PN-CWH-058 Weather-Pac Green Seal 18-20 Gauge: Seal Weather-Pac Terminal: Universal Quantity: 1

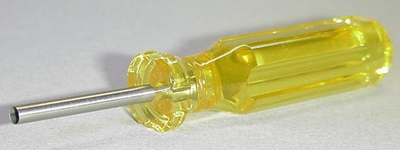

	Weather Pack Removal Tool			906475 $7.15 Weather-Pac Tool  906475 $7.15 PN-CWH-059 Weather-Pac Tool: Tool Weather-Pac : Universal Quantity: 1
	Cavity Plug			75042   $.14  Cavity Plug 75042 $.14 PN-CWH-060 Weather-Pac Cavity Plug: Seal Weather-Pac Plug: Universal Quantity: 1
	Crimping Tool Multi-gauge			906485 $154.98 Crimper 906485 $154.98 PN-CWH-059 Crimper Weather-Pac: Crimper Weather-Pac Terminal: Universal Quantity: 1
	Crimping Tool			906495   $99.85  Crimper 906495 $99.85 PN-CWH-060 Weather-Pac Crimper: Weather-Pac Terminal Crimper: Universal Quantity: 1
	Crimper			990170 $28.50
